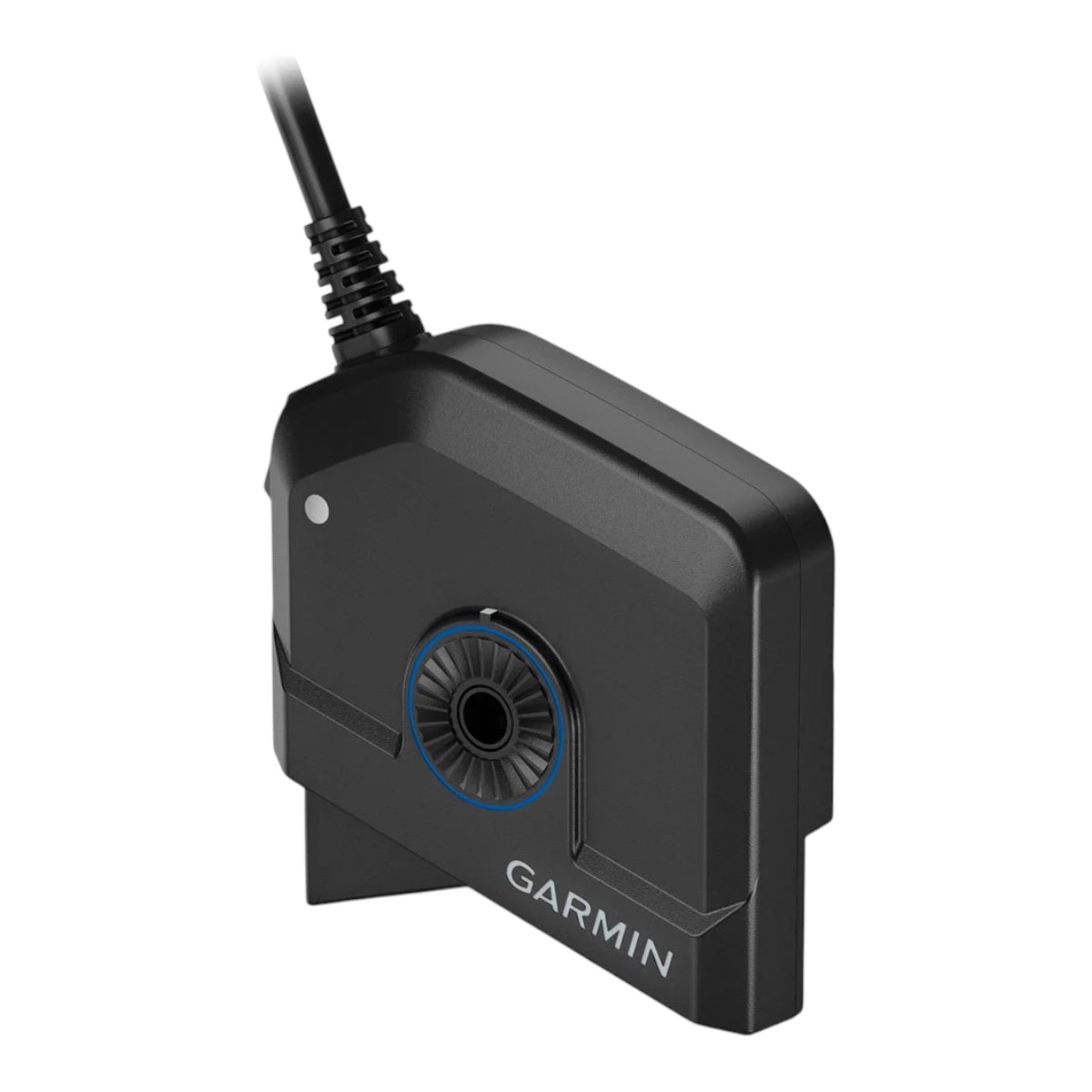

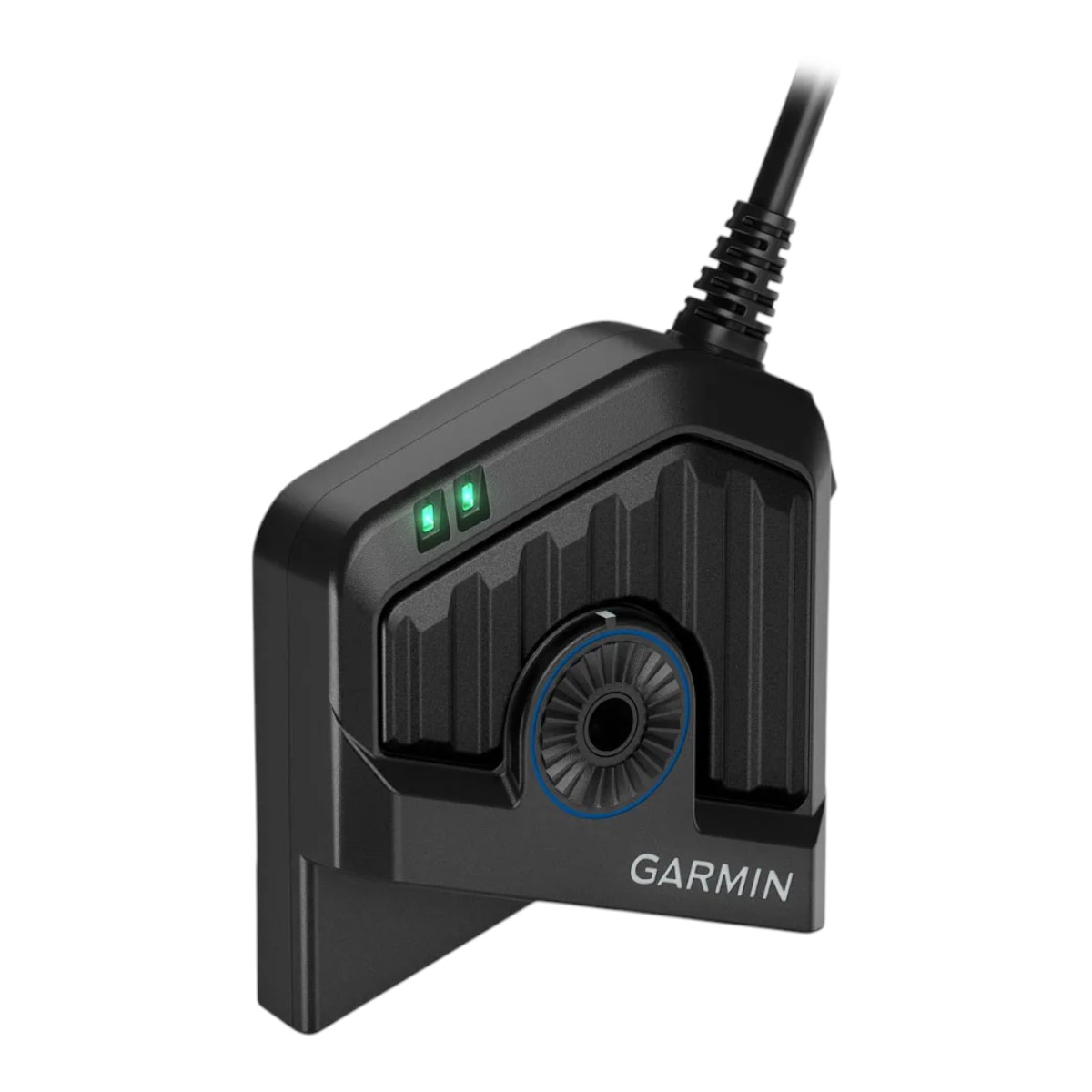

GarminLiveScope™ 2 HD Transducer

Description

See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.

• Our Clearest Sonar
  See fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.
• No black box
  The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.
• Fast processing
  Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.
• Integrated sensors
  Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.
• Improved coverage
  Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.
• Vivid color palettes
  When LiveScope 2 is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.
• Specifications
  Transducer beamwidth: Forward: 20° x 165° ; Down, Perspective: 20° x 180°
  Transducer cable length: 5.5 m (18 ft)
  Transducer number of pins: 7
  Dimension: 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm)
  Weight: 3.62 lbs (1.646 kg)
  Temperature range: 0 C to 40 C
  Power Input: 10-35 V
  Power usage: 32 W max
  Fuse: 7.5 A
  Compass safe distance: 4"
  Frequency: 850 kHz-1 600 kHz
  Transmit power: 521 W
  Maximum depth: Down and Forward: 125’
  Sonar Type: Live
  Target Separation @ 100': 12.6"
  Target separation @ 30': 3.8"
  Perspective Mode Mount Included: yes (adjustable angles)
• In the box
  LiveScope 2 LVS42HD transducer
  Adjustable perspective shaft mount for LiveScope 2 transducers
  Trolling motor barrel mount
  Power/network cable with adapter
  Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
  Hardware
  Documentation
• Model: 010-03899-00.
