ZoleoUniversal Mount Kit

Description

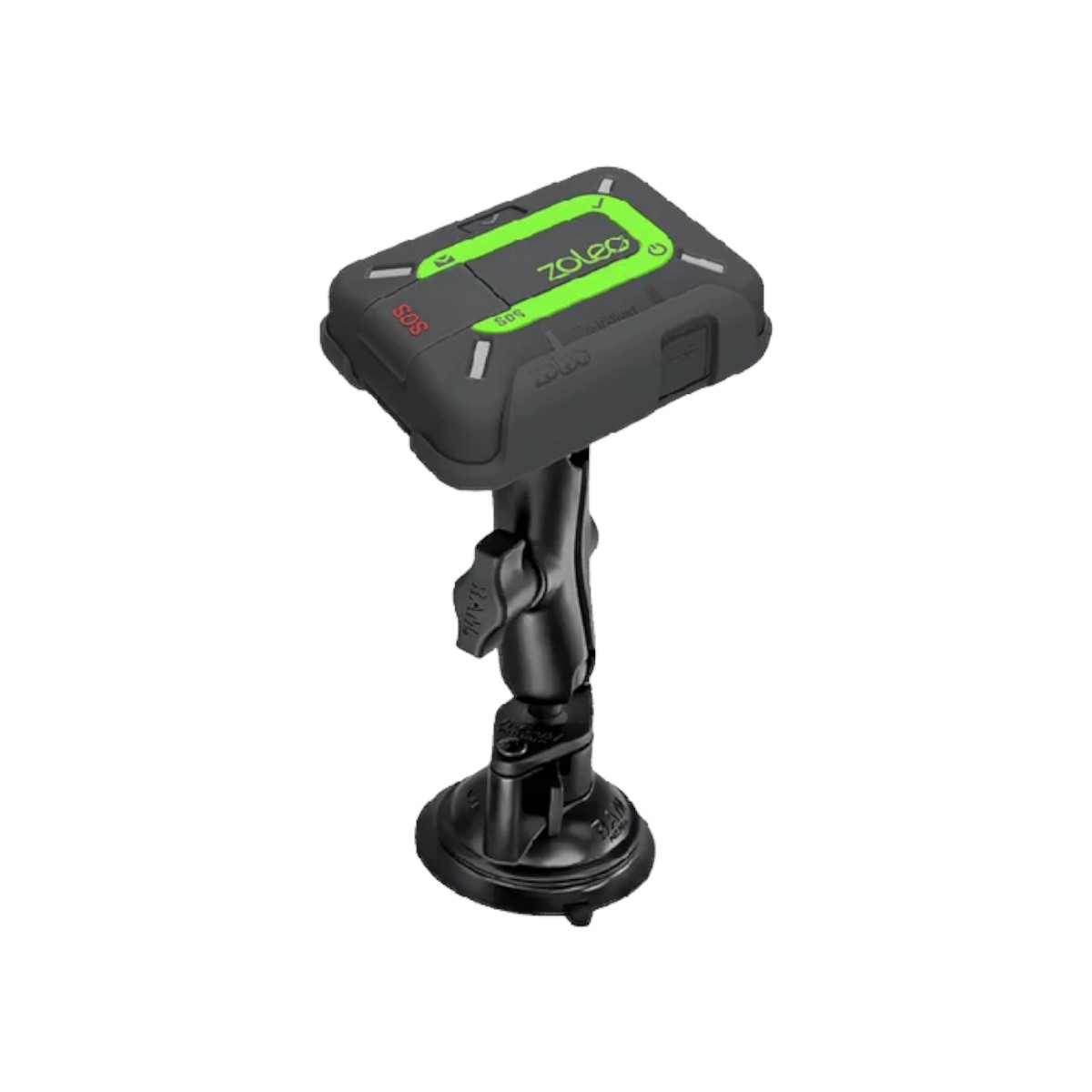

Ideal for securing the ZOLEO satellite communicator on the windshield of a vehicle or vessel, the ZOLEO Universal Mount Kit secures the ZOLEO device in place and keeps it charged. This kit includes the a USB car charger, RAM® Twist-Lock™ Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces, and an adjustable arm. It also includes the complete ZOLEO Cradle Kit and the Quick Start Guide.

Includes:

RAM Twist-Lock Suction Cup Base with Ball
- Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
- Weight: 118 g (4.16 oz)
- Ball: B Size 2.54 cm (1 in) rubber ball
RAM Double Socket Arm
- Adjustable to the desired look-angle
- Dimensions: 9.47 cm (3.73 in)
- Weight: 140.6 g (4.96 oz)
RAM Ball Adapter with ¼"-20 Threaded Stud for Action Cameras
- Dimension: 63.5 mm (2.5 in) in diameter
- Weight: 72.57 g (2.56 oz)
- Stud: ¼”-20 threaded steel stud
- Ball: B Size 2.54 cm (1 in) rubber ball
DC Car Charger
- Single USB port for use with the included USB to Micro-USB cable
- Input Voltage: 12-24 V
- Output Voltage: 5 V
- Max Current (A): 2.5 A
USB Cable
- 1.2 m (3.9 ft) (USB to Micro-USB)

Cradle Kit Components (included)

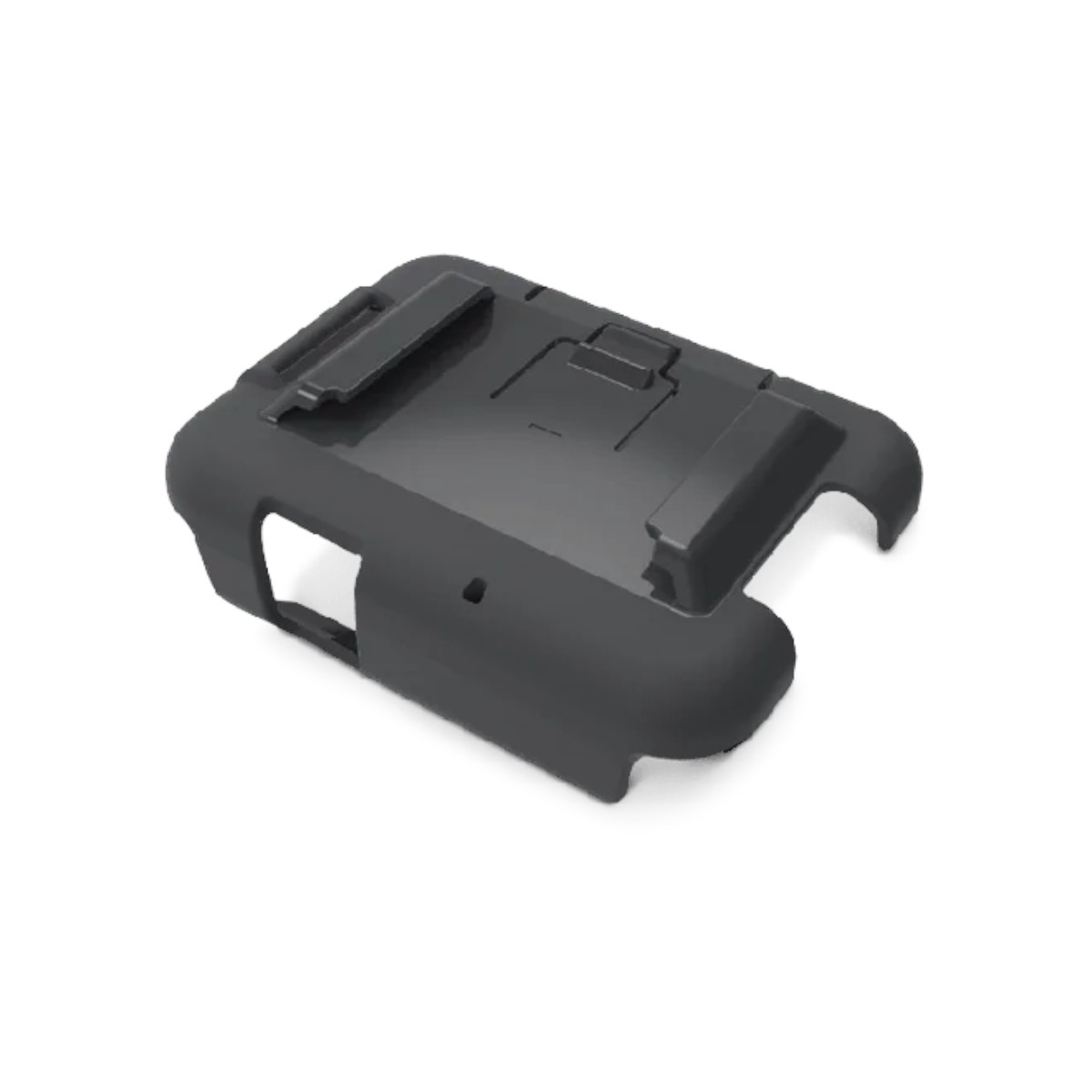

Main Cradle: Secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.
- Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
- Weight: 3.0 g (0.10 oz)
- Colour: Grey

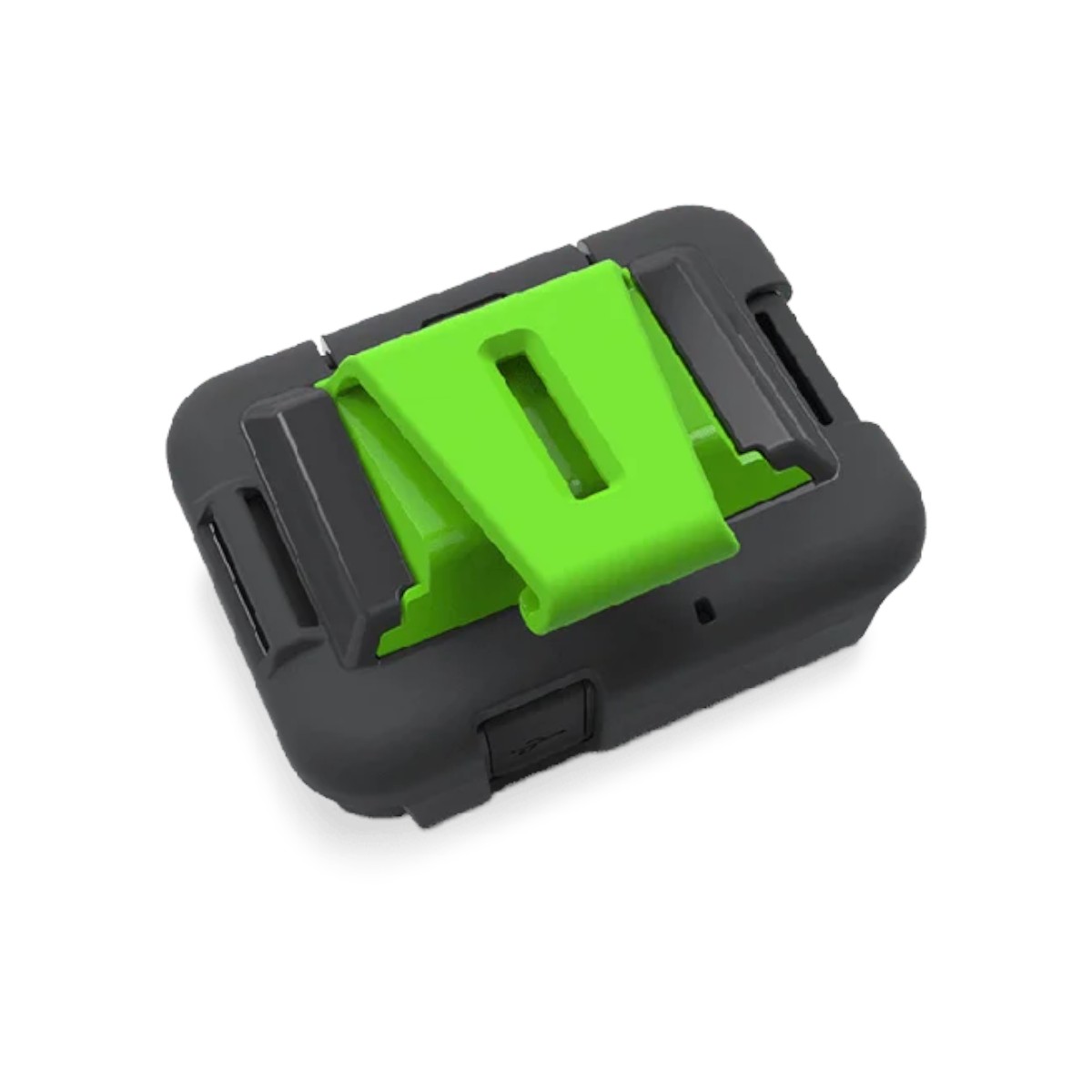

Belt Clip Insert: Secures your ZOLEO device to be worn on a belt.
- Weight: 2.0 g (0.07 oz)
- Colour: Green

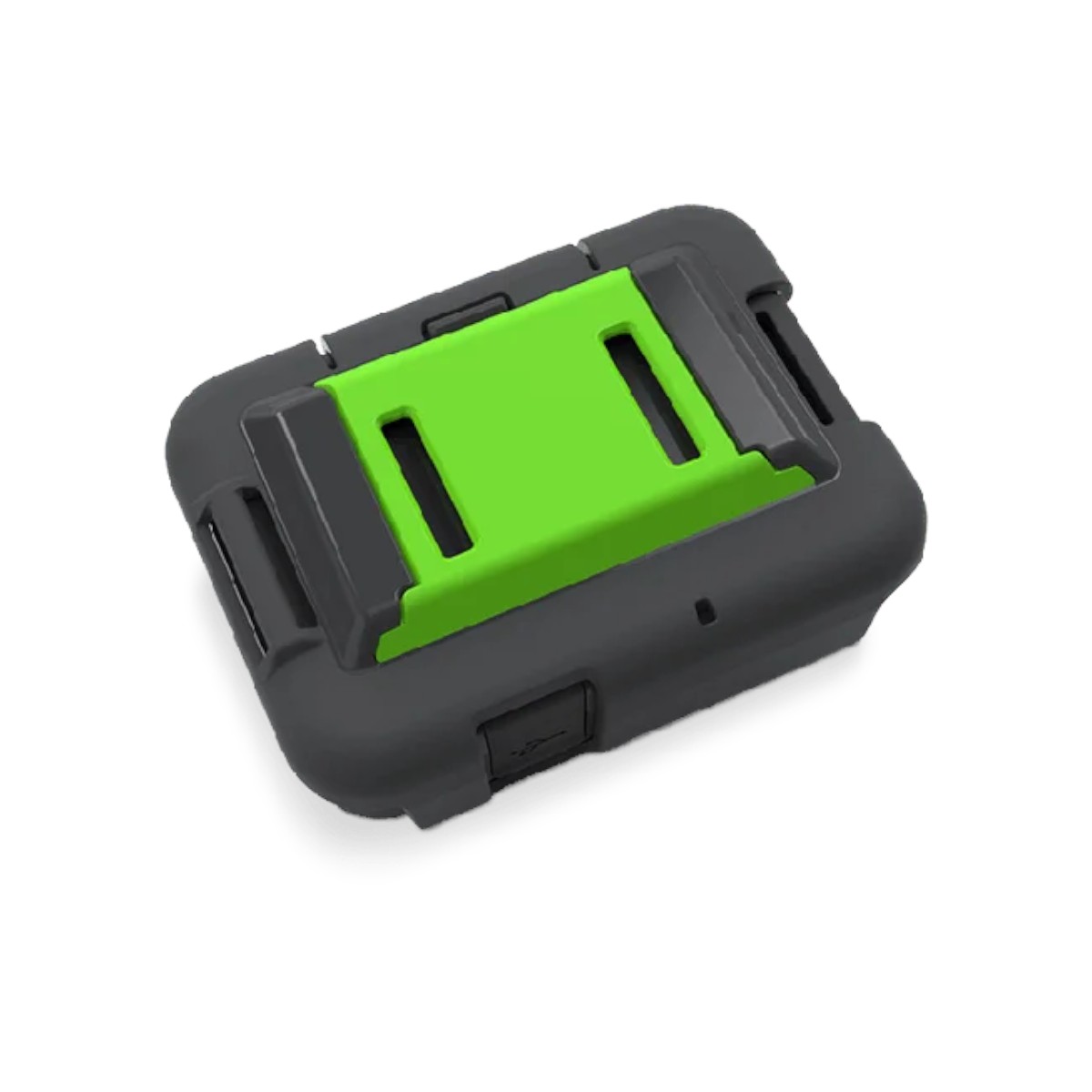

Strap Mount Insert: Secures your ZOLEO device flat against a backpack or other installations using a strap or tether.
- Fits straps up to: 25 mm (1 in)
- Weight: 1.0 g (0.03 oz)
- Colour: Green

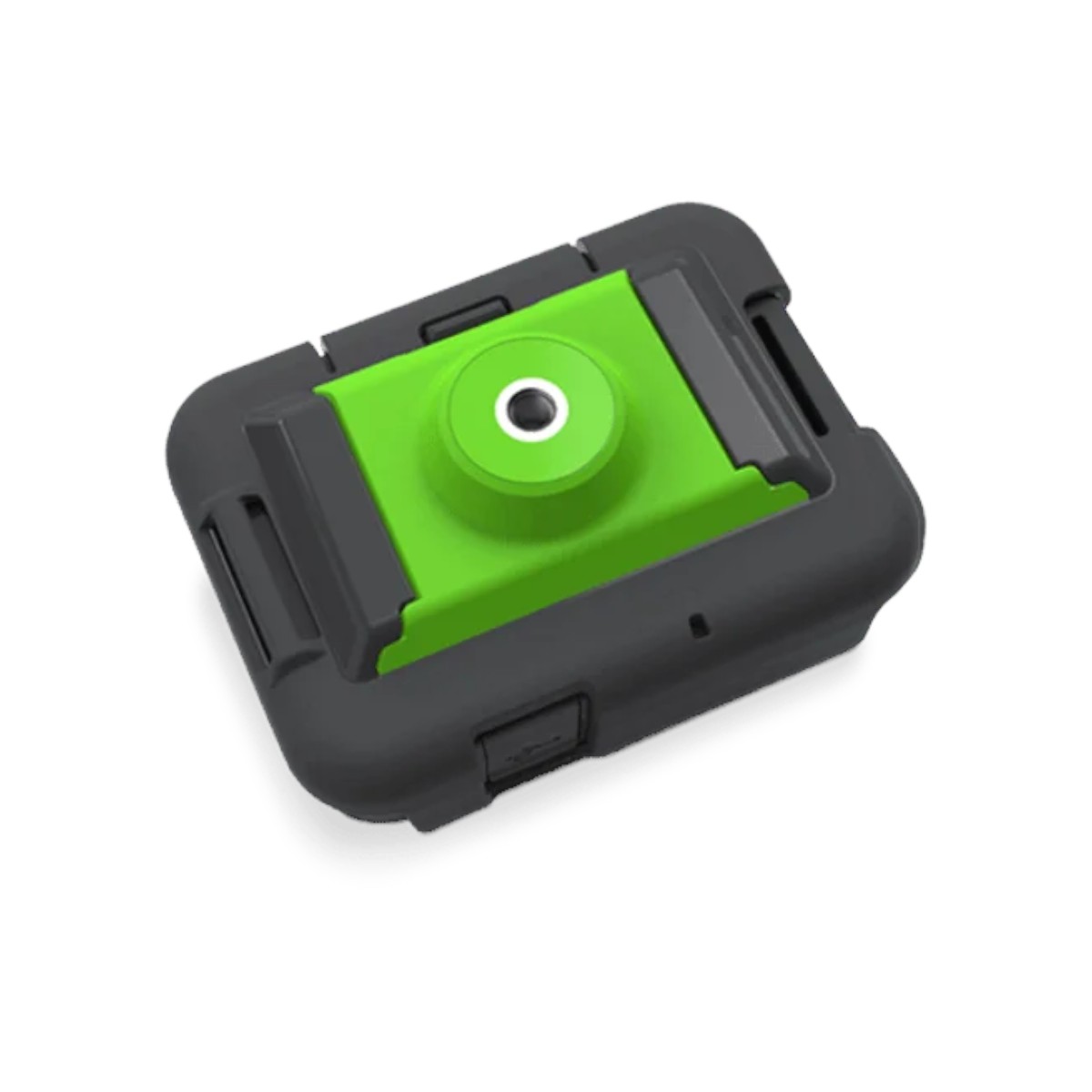

Camera Mount Insert: Secures your ZOLEO device to any universal camera mount.
- Weight: 1.5 g (0.05 oz)
- Thread Type: ¼"-20 UNC
- Colour: Green

• Model: MOU-VE-ZOULUNI01.
